Proximity Sensor

• Accuracy
• 1 mm (typical)

• Application
• Industrial automation, position sensing, machine safety

• Cable Length
• Normally supplied with 2 m pre-wired cable

• Features
• Short-circuit protection, vibration resistant, polarity reversal protection

• Function
• Object detection without contact

• Housing Material
• Nickel-plated brass

• IP Rating
• IP67

• Ingress Protection
• IP67

• Input
• DC 3-wire or 2-wire (depends on model)

• Interface
• Cable (Pre-wired) or Connector (varies by model)

• Material
• Metal (Nickel-plated)

• Measurement Range
• Sensing distance 2-8 mm (typical for M12)

• Mounting Thread
• M12 x 1

• Mounting Type
• Threaded, flush/non-flush mounting

• Operating Temperature
• -25C to +70C

• Output
• PNP/NPN NO/NC (depending on model)

• Power Consumption
• 15 mA

• Product Type
• Cylindrical Inductive Proximity Sensor

• Resolution
• High, detects small metallic objects

• Response Time
• < 2 ms

• Sensitivity
• Factory calibrated, non-adjustable

• Sensor Type
• Inductive proximity sensor

• Signal Type
• Other, Digital (Switching)

• Spectral Range
• Not applicable (inductive technology)

• Usage
• Detect metal objects within a defined range

• Voltage
• 10-30V DC

• Weight
• Approx. 25 g

• Wireless
• No

• Accuracy
• High repeatability

• Application
• Object detection, position sensing

• Cable Length
• 2 m

• Features
• Short barrel design, visible indicator LED, reverse polarity and overload protection

• Function
• Presence Detection

• Housing Material
• Plastic

• IP Rating
• IP67

• Ingress Protection
• IP67

• Input
• 10-30 V DC

• Interface
• 2-wire/3-wire

• Material
• Plastic

• Measurement Range
• 0-4 m (with reflector)

• Mounting Thread
• M18

• Mounting Type
• Panel, bracket or threaded mount

• Operating Temperature
• -25C to +55C

• Output
• PNP

• Power Consumption
• Max. 25 mA

• Product Type
• Reflective Type Photo Sensor

• Resolution
• Standard

• Response Time
• < 1 ms

• Sensitivity
• Adjustable

• Sensor Type
• Photoelectric Sensor

• Signal Type
• Other, NPN/PNP Open collector

• Spectral Range
• Red LED (Light source wavelength: 624 nm)

• Usage
• Industrial Automation

• Voltage
• 10-30V DC

• Weight
• Approx. 55g (with cable)

• Wireless
• No

• Application
• Industrial automation, sensor wiring

• Cable Length
• 2 m

• Features
• RoHS compliant, for use with Omron proximity sensors

• Function
• Cable connection for sensor

• Housing Material
• PVC

• Input
• Not Applicable (Cable)

• Interface
• Wire/ Cable

• Material
• PVC (Polyvinyl Chloride)

• Mounting Type
• Cable-mounted

• Output
• Not Applicable (Cable)

• Product Type
• Proximity Sensor Cable

• Sensor Type
• Proximity sensor accessory

• Usage
• Industrial sensor connectivity

• Wireless
• No

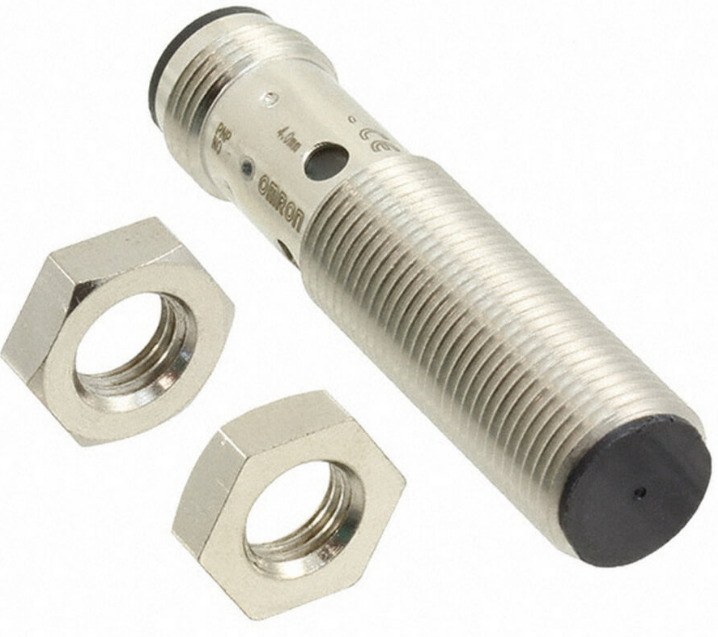

• Accuracy
• 1 mm

• Application
• Factory Automation, Robotics

• Cable Length
• 2m or Connector Type

• Features
• Non-contact sensing, Shielded type

• Function
• Object/Metal Detection

• Housing Material
• Stainless Steel

• IP Rating
• IP67

• Ingress Protection
• IP67

• Input
• 10-30V DC

• Interface
• 3-wire DC

• Material
• Metal (Body), Plastic (Sensing Face)

• Measurement Range
• 2-4 mm (sensing distance)

• Mounting Thread
• M12

• Mounting Type
• Threaded, Flush Mount

• Operating Temperature
• -25 to 70C

• Output
• PNP/NPN (depends on model)

• Power Consumption
• <15mA

• Product Type
• Proximity Sensor

• Resolution
• High

• Response Time
• <1 ms

• Sensitivity
• Standard

• Sensor Type
• Inductive Proximity Sensor

• Signal Type
• Digital

• Usage
• Industrial Automation, Position Sensing

• Voltage
• 12-24V DC

• Weight
• approx. 30g

• Wireless
• No

• Accuracy
• High

• Application
• Position/metal detection in automation

• Cable Length
• Typically 2 meters (varies by model)

• Features
• LED indicator, robust design

• Function
• Object detection (metal)

• Housing Material
• Nickel-plated brass

• IP Rating
• IP67

• Ingress Protection
• Yes

• Input
• DC supply

• Interface
• 3-wire/4-wire connection

• Material
• Metal body with plastic sensing face

• Measurement Range
• 2-8 mm (varies by model)

• Mounting Thread
• M12

• Mounting Type
• Flush/Non-flush

• Operating Temperature
• -25C to +70C

• Output
• PNP/NPN, NO/NC (varies by model)

• Power Consumption
• Max. 10 mA (sensor only)

• Product Type
• Cylindrical Inductive Proximity Sensor

• Resolution
• Standard for proximity sensors

• Response Time
• 2 ms

• Sensitivity
• Standard for M12

• Sensor Type
• Inductive Proximity

• Signal Type
• Digital

• Spectral Range
• Not applicable (inductive)

• Usage
• Industrial automation and machinery

• Voltage
• 10-30V DC

• Weight
• Approx. 30 g (excluding cable)

• Wireless
• No

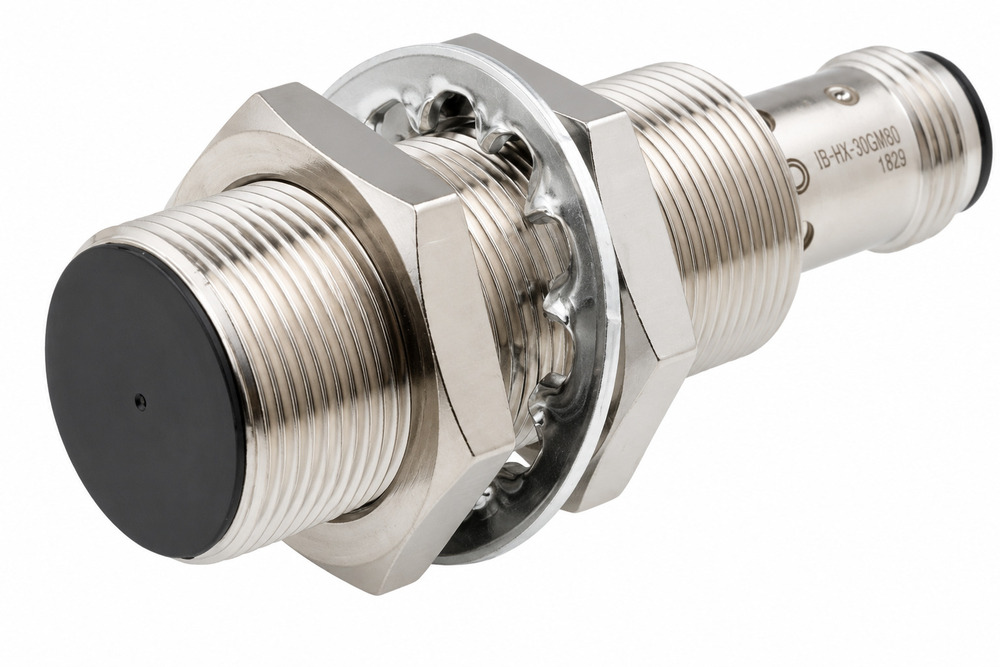

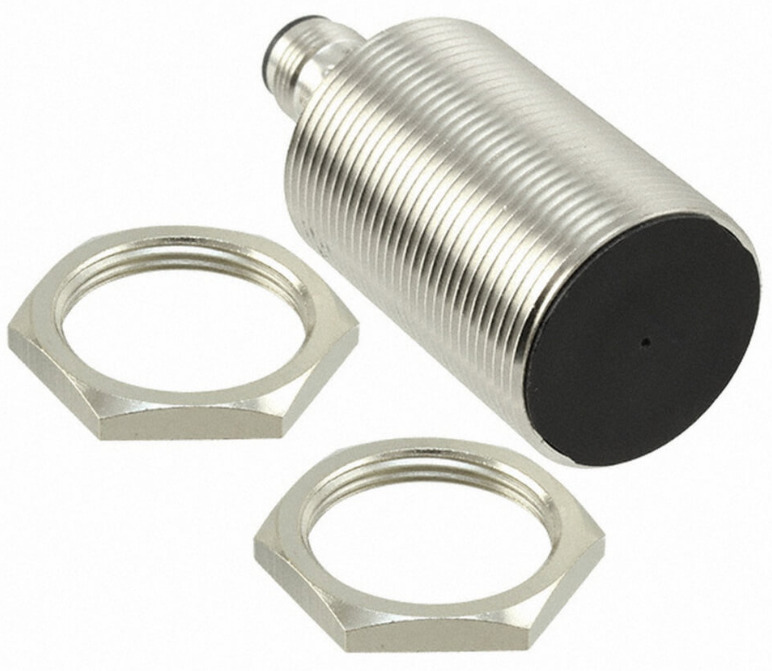

• Accuracy
• High repeatability, typically 0.1 mm

• Application
• Automation, Conveyor, Machine Safety

• Cable Length
• 2 m (standard, if cabled)

• Features
• Short-circuit, overload, reverse polarity protection

• Function
• Non-contact object detection

• Housing Material
• Nickel-plated Brass

• IP Rating
• IP67

• Ingress Protection
• IP67

• Input
• DC 3-wire / 2-wire options

• Interface
• Cable or connector (M12)

• Material
• Metal body with plastic sensing face

• Measurement Range
• Sensing distance: 10 mm (typical for M30 type)

• Mounting Thread
• M30

• Mounting Type
• Threaded barrel mount

• Operating Temperature
• -25C to +70C

• Output
• PNP or NPN, NO/NC selectable

• Power Consumption
• < 15 mA (no load)

• Product Type
• Cylindrical Inductive Proximity Sensor

• Resolution
• Detects objects as small as 1 mm

• Response Time
• 1 ms

• Sensitivity
• Factory set for metal detection

• Sensor Type
• Inductive Proximity

• Signal Type
• Other, Transistor output (Switching)

• Spectral Range
• Not Applicable (inductive sensing)

• Usage
• Position and presence sensing

• Voltage
• 10-30V DC

• Weight
• Approx. 75-120 g (without cable)

• Wireless
• No
