Safety Relay

• Ambient Temperature
• -40C to +70C (no freezing or condensation)

• Coil Power
• Approx. 0.9 W

• Coil Voltage
• 24V DC

• Color
• Transparent/Black/Red

• Contact Form
• DPDT (2 Form C)

• Contact Load
• Other, 5A/250VAC, 5A/30VDC (resistive load)

• Contact Material
• Ag alloy

• Contact Resistance
• 100 m max. (at 1A 6VDC)

• Dielectiric Strength
• 2,000 VAC, 50/60 Hz for 1 min between coil and contacts

• Dimension (L*W*H)
• approximately 2821.536 mm

• Insulation Resistance
• 1,000 M min. (at 500 VDC)

• Mechanical Life
• 10,000,000 operations min.

• Operate Time
• 20 ms max.

• Power Consumption
• Approx. 0.9 W

• Product Type
• Safety Relay

• Protect Feature
• Other, Sealed construction, coil surge absorber

• Rated Voltage
• 24V DC

• Size
• Other, General purpose mini size

• Supply Terminal
• Screw terminal

• Terminal Type
• Other, Plug-in

• Theory
• Other , Electromagnetic Relay

• Usage
• Industrial automation, control panels, and safety circuits

• Weight
• about 35 g

• Working Temperature
• -40C to +70C

• Ambient Temperature
• -25 to +60 C

• Coil Power
• Approx. 0.9 W

• Coil Voltage
• 24 VDC

• Color
• Transparent/Black

• Contact Form
• 2NO+2NC (DPST+DPDT configuration)

• Contact Load
• Other, 6 A at 250 VAC / 30 VDC

• Contact Material
• Gold-plated Ag alloy

• Contact Resistance
• 100 m max. (initial value)

• Dielectiric Strength
• 4,000 VAC, 1 min (Between coil and contacts)

• Dimension (L*W*H)
• 35.5 27.5 41 mm

• Insulation Resistance
• 1,000 M min. (at 500 VDC)

• Mechanical Life
• 10,000,000 operations minimum

• Operate Time
• 35 ms max.

• Power Consumption
• Approx. 0.9 W

• Product Type
• Safety Relay

• Protect Feature
• Other, Reinforced Insulation

• Rated Voltage
• 24 VDC

• Size
• Other, Standard

• Supply Terminal
• Screw/PCB Terminal

• Terminal Type
• Other, Plug-in

• Theory
• Other , Electromagnetic Relay

• Usage
• Industrial Safety Circuits

• Weight
• About 35 g

• Working Temperature
• -25 to +60 C

• Ambient Temperature
• -25C to +55C (without freezing or condensation)

• Coil Power
• Approx. 0.9 W

• Coil Voltage
• 24V DC

• Color
• Transparent cover with black base

• Contact Form
• 3NO+1NC (3A1B)

• Contact Load
• Other, 6A at 250V AC / 30V DC

• Contact Material
• Ag alloy (gold-clad)

• Contact Resistance
• Max. 100m (at 1A 6VDC)

• Dielectiric Strength
• 2,500 V AC 1 min between coil and contacts

• Dimension (L*W*H)
• Approx. 35.5 mm x 27.5 mm x 53.5 mm

• Insulation Resistance
• Min. 100M at 500 VDC

• Mechanical Life
• Approx. 10,000,000 operations

• Operate Time
• Approx. 20 ms

• Power Consumption
• Approx. 0.9 W

• Product Type
• Safety Relay

• Protect Feature
• Other, Force-guided contacts, safety mechanism

• Rated Voltage
• 24V DC

• Size
• Other, Standard relay module size

• Supply Terminal

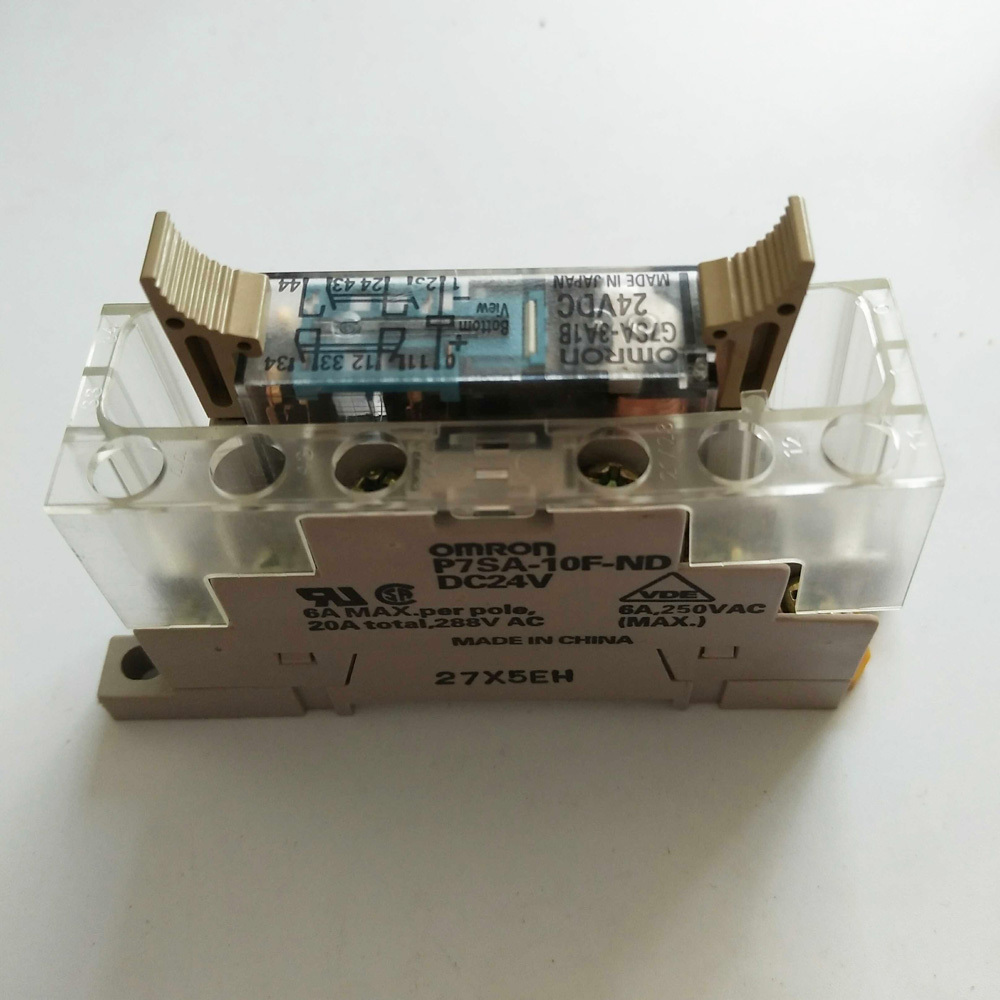

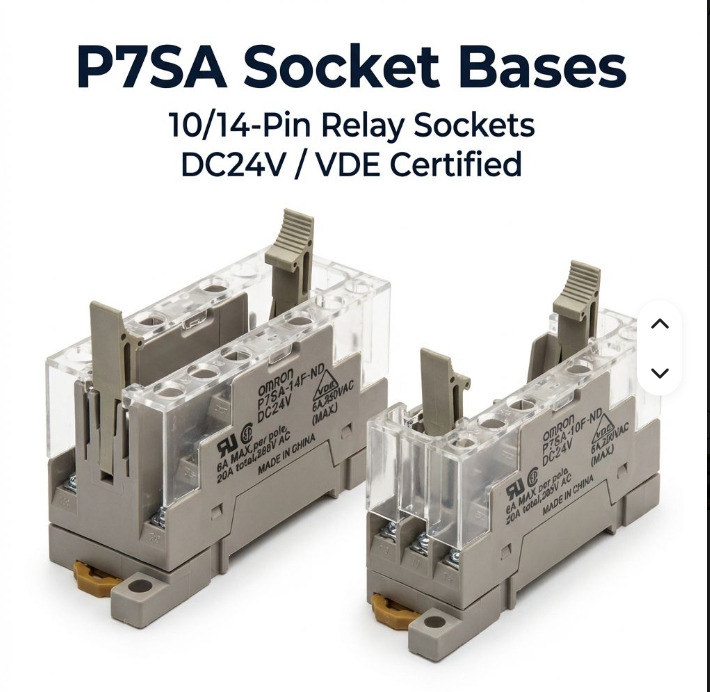

• P7SA-14F-ND Socket

• Terminal Type
• Other, Plug-in terminal

• Theory
• Other , Electromagnetic relay

• Usage
• Safety control systems, emergency stop circuits, relay interlock

• Weight
• Approx. 70g

• Working Temperature
• -25C to +55C

• Ambient Temperature
• -40C to +70C

• Coil Power
• approx. 0.9 W

• Coil Voltage
• 24V DC

• Color
• Transparent case with red indicator

• Contact Form
• 4PDT (4 Form C)

• Contact Load
• Other, 5A 250V AC / 5A 30V DC

• Contact Material
• Silver alloy

• Contact Resistance
• 100 m max.

• Dielectiric Strength
• 2,000V AC, 1 min (between coil and contacts)

• Dimension (L*W*H)
• Approx. 27.5 x 21.5 x 35.5 mm

• Insulation Resistance
• Min. 100M (at 500V DC)

• Mechanical Life
• 10,000,000 operations min.

• Operate Time
• 20ms max.

• Power Consumption
• Approx. 0.9W

• Product Type
• Safety Relay

• Protect Feature
• Other, Enclosed, finger protection

• Rated Voltage
• 24V DC

• Size
• Other, Standard MY series size

• Supply Terminal
• Screw terminal

• Terminal Type
• Other, Plug-in

• Theory
• Other , Electromagnetic Relay

• Usage
• Safety circuits, industrial control

• Weight
• Approx. 90 g

• Working Temperature
• -40C to +70C

• Ambient Temperature
• -25C to +55C

• Coil Power
• 1.2 W

• Coil Voltage
• 24V DC

• Color
• Grey

• Contact Form
• 2 NO + 1 NC

• Contact Load
• Other, 6A at 250VAC / 6A at 24VDC

• Contact Material
• Ag Alloy

• Contact Resistance
• 100 m

• Dielectiric Strength
• 2,500VAC 50/60Hz for 1 min

• Dimension (L*W*H)
• 87 x 22.5 x 100 mm

• Insulation Resistance
• >100 M at 500 VDC

• Mechanical Life
• Over 10,000,000 operations

• Operate Time
• <10 ms

• Power Consumption
• Approx. 1.2 W

• Product Type
• Safety Relay

• Protect Feature
• Other, Enclosure with Finger Protection

• Rated Voltage
• 24V DC

• Size
• Other, Standard DIN Rail Mount

• Supply Terminal
• Screw Clamp

• Terminal Type
• Other, Screw Terminal

• Theory
• Other , Electromagnetic Relay

• Usage
• Industrial Automation Safety Circuits

• Weight
• Approx. 150g

• Working Temperature
• -20C to +60C
